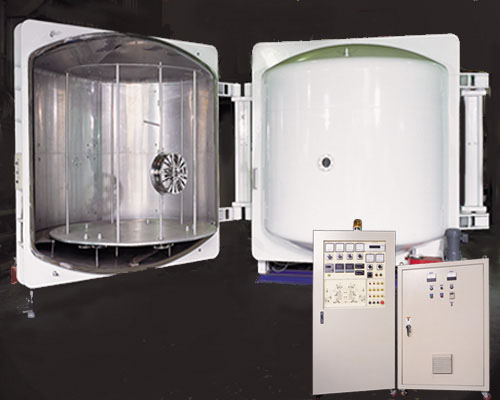

High Vacuum Magnetic Control Laminating M/C

  • VCO-102

.Model: VCO-102
.Application: high quality plastic film as mirror back, car
auto light and bottles etc.,
.Feature: fast pumping rate,good film uniformity, automatic
control and protection
1. Main power: 3Phase 220/380V, 50/60 HZ Appox 120A
2. Sus chamber: dia. 1800-2200 mm × h. 1500-1600 mm(Or
customer spec)
3. System control: PLC automatic control and protection
4. Power supply: 2200/380V 50/60HZ 600V/900V 75A/150A
5. Pole size: 170W×1400~1565L
6. Vacuum pumps: 8500 L/Min/Mechanic pump
3400~5100 M3/HR/Ross pump
23000 L/Sec/26 Inch diffusion pump
customer spec
.Necessary space, weight(approx):
W × D × H: 5000 mm × 4000 mm×2800 mm, 7000-110000 kg
Country of Origin:Taiwan
Sales Method:Manufacture
Payment Terms:T/T,L/C

Chen-I Vacuum Technology Enterprise

Variable vacuum equiments as e-beam / thermal /sputtering and lab system...tec., Vacuum coating equipments as multi-layers optical lens(glass / chrome mirror / blue mirror /car light / fog light etc.,) Vacuum coating whole plant equipments vacuum equipments applicaton consulting /service / desing / manufacturing High quality vacuum coating processable article processable articles optical multi-films lens as glasses , chrome mirror , blue mirror , car light and fog light etc.,
